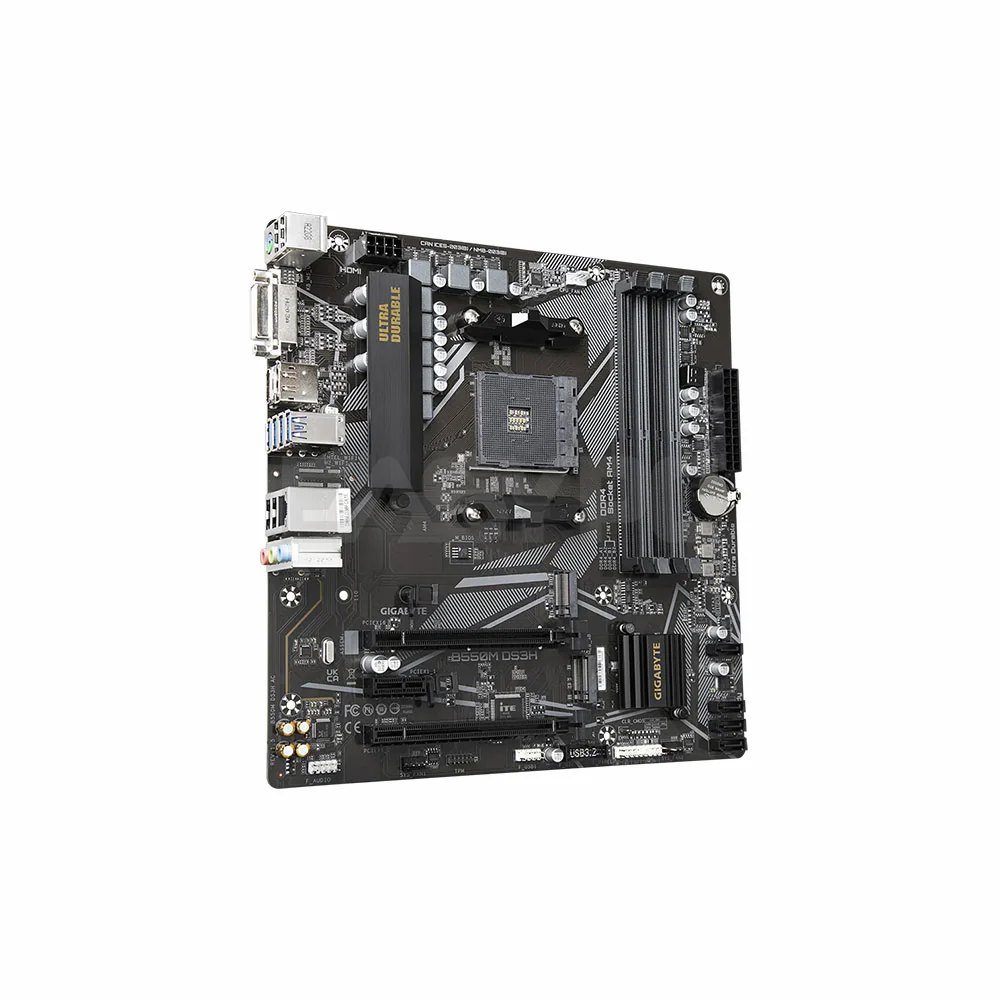

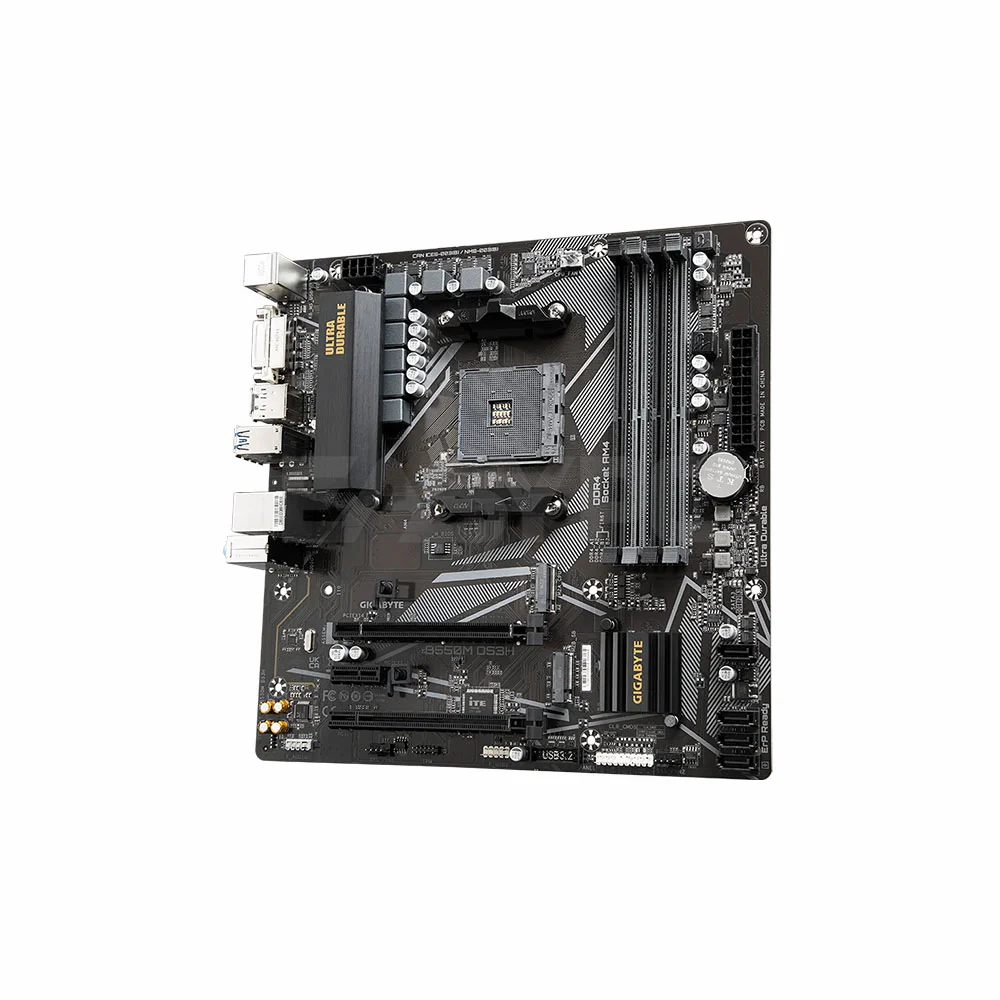

Gigabyte B550M DS3H Socket Am4 Ddr4 Motherboard

Product Description

The Gigabyte B550M DS3H AM4 DDR4 Motherboard offers solid performance. With AM4 socket and DDR4 support, it's perfect for basic multitasking and computing needs. Upgrade for an affordable, reliable, and straightforward build experience. Ideal for budget-conscious users seeking a functional motherboard.

Product Specifications

• Brand: GIGABYTE
• Model: B550M DS3H
• CPU Socket Type: AM4
• CPU Type: AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
• Chipset: AMD B550
• Number of Memory Slots: 4×288pin
• Memory Standard: 3rd Gen AMD Ryzen Processors:
• Support for DDR4 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
• Maximum Memory Supported: 128GB
• Channel Supported: Dual Channel
• PCI Express 4.0 x16: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
• 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• PCI Express 3.0 x16: 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
• Supporting PCIe 3.0 x4 mode
• PCI Express x1: 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
• Supporting PCIe 3.0 x1 mode
• SATA 6Gb/s : 4 x SATA 6Gb/s
• 2: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
• 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
• Onboard Video Chipset: Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Audio Chipset: Realtek ALC887
• Audio Channels: 2/4/5.1/7.1-channel
• LAN Chipset: Realtek GbE LAN chip
• Max LAN Speed: 10/100/1000Mbps
• Back I/O Ports: 1 x PS/2 keyboard/mouse port
• 1 x DVI-D port
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• Onboard USB: 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• Other Connectors: 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button
• Form Factor: Micro ATX
• Dimensions (W x L): 9.6" x 9.6"
• Power Pin: 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
