Gigabyte B450 Aouros Pro Wifi with 4+2 Phase IR Digital PWM, Intel Dual Band 802.11ac Socket Am4 Ddr4 Gaming Motherboard

Product Description

Empower your PC with the Gigabyte B450 Aorus Pro WiFi Motherboard. Packed with advanced features, including WiFi connectivity, it ensures seamless performance for gaming and productivity. The Aorus design adds a touch of style, making it an ideal choice for a high-performance build.

Product Specifications

• Brand: GIGABYTE
• Model: B450 AORUS PRO WIFI (rev. 1.0)
• CPU Socket Type: AM4
• CPU Type: Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
• Chipset: AMD B450
• Number of Memory Slots: 4×288pin
• Memory Standard: Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
• Maximum Memory Supported: 128GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• PCI Express 2.0 x16: 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
• PCI Express x1: 1 x PCI Express x1 slot (PCIEX1_1)
• Other Slots: 1 x M.2 Socket 1 connector for a wireless communication module (M2_WI-FI)
• SATA 6Gb/s: 6 x SATA 6Gb/s
• M.2: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support) (M2B_SOCKET)
• Audio Chipset: Realtek ALC1220-VB codec
• Audio Channels: 2/4/5.1/7.1-channel Support for S/PDIF Out
• LAN Chipset: Intel GbE LAN chip
• Max LAN Speed: 10/100/1000Mbps
• Wireless LAN: Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
• Support for 11 ac wireless standard and up to 433 Mbps data rate
• Bluetooth: BLUETOOTH 4.2

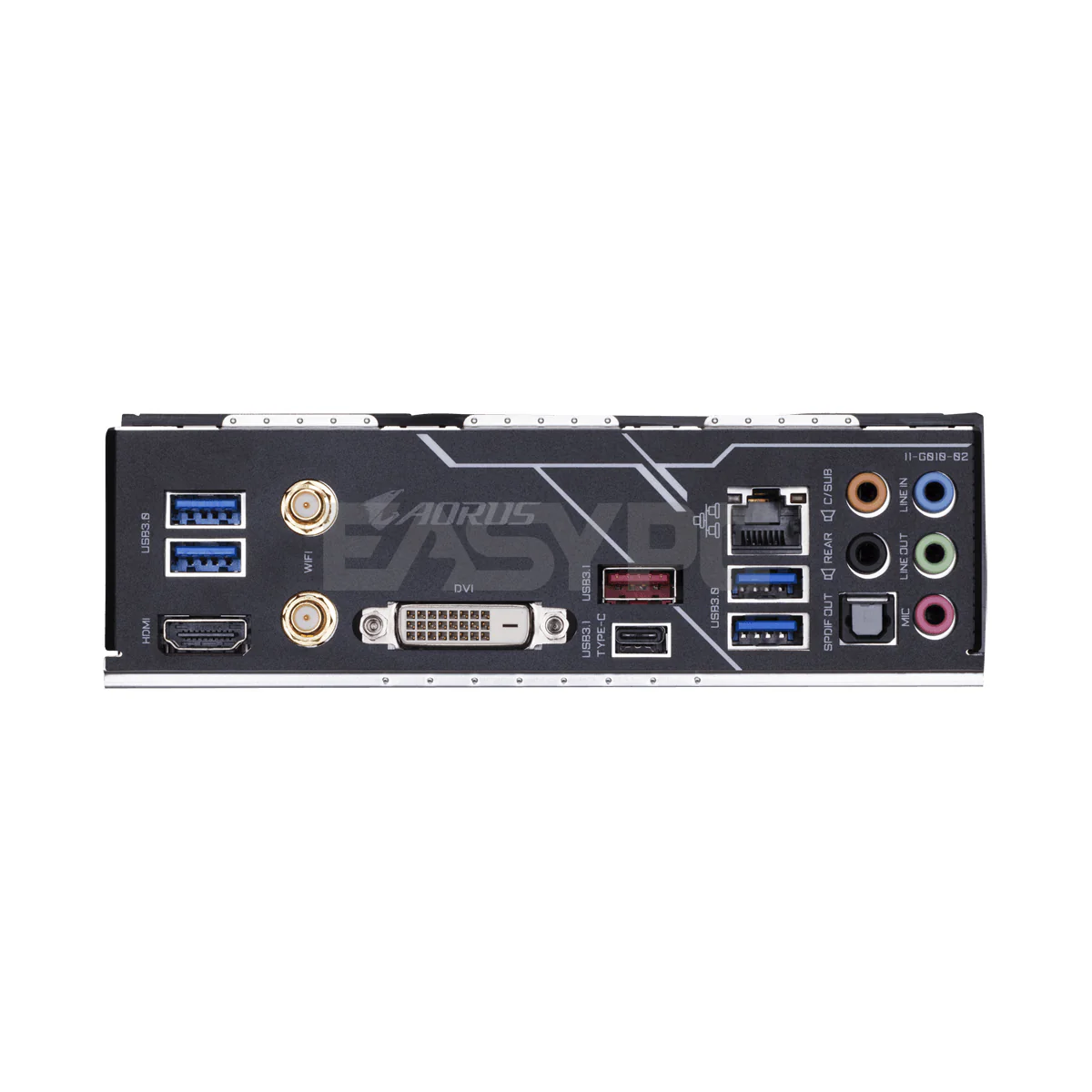

• Back I/O Ports:
• 1 x HDMI port
• 2 x SMA antenna connectors (1T1R)
• 1 x DVI-D port
• 4 x USB 3.1 Gen 1 ports
• 1 x USB Type-C port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks
• Onboard USB: 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
• Form Factor: ATX
• LED Lighting: RGB
• Dimensions (W x L): 12.0" x 9.6"
• Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
